Products > Specialty fiber > > Low dielectric loss glass fiber
Product name : Low dielectric loss glass fiber
Item : 201455211153
MOQ : 100kg
Shipment : within 15 days after payment
 Enlarge Image                   Back
←[Previous Product]


Details:

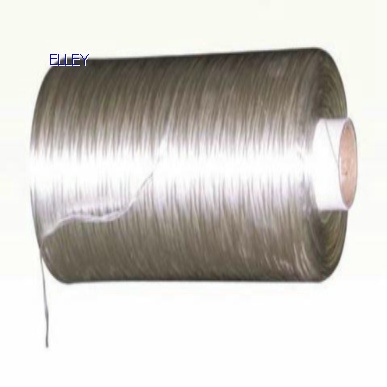

Low dielectric loss glass fiber

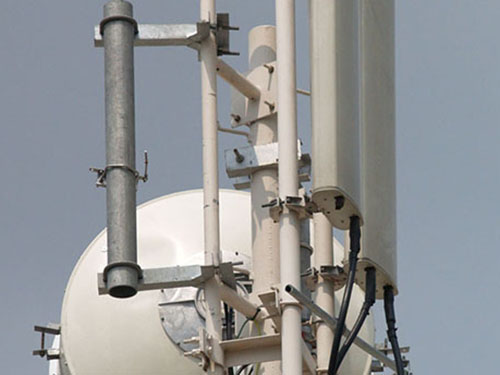

Low dielectric names D glass fiber, have D3, Dk series. It is low density, low dielectric constant and low dielectric loss. It is an ideal reinforcement for making light weight and high performance radomes with high wave permeability and wide frequency band and print circuit board etc...

Specifications D glass fiber

Items

D3

Dk

Density g/cm3

2.30

2.30

Strength of virgin filament Mpa

2600

2600

Elastic modulus GPa

55

55

Dielectric constant 22 10*10HZ

4.5

5.0



Dielectric loss 2210^10HZ

<0.0035

0.0035

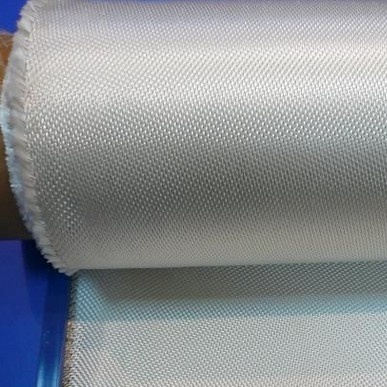

D glass fiber fabric

Specification

D3

Dk

Thickness mm

0.22

0.22

Weight g/m2

210

210

Breaking strength N/100*25



Warp

≥1350

1450

Weft fill

1000

1050





Related Products :
High silica fiber
2014560410
High silica fiber

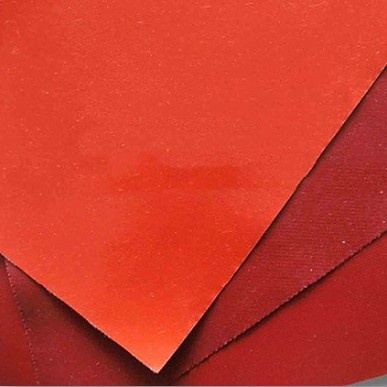

Silicon Rubber Cloth
20145605138
Silicon Rubber Cloth

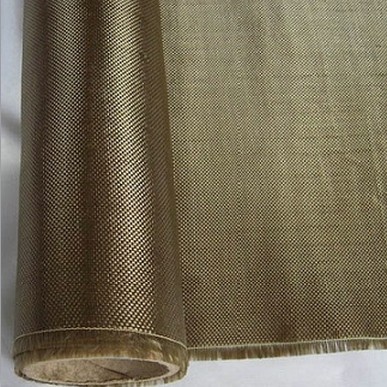

Basalt fiber fabric
20145612918
Basalt fiber fabric
3D fabric
2015112691551
3D fabric

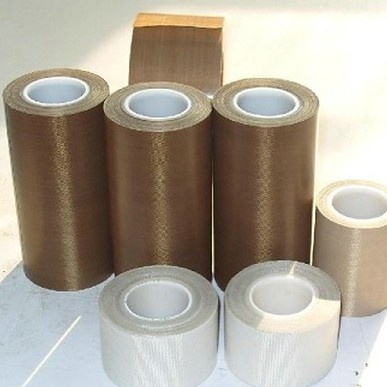

PTFE adhesive tape
20145614934
PTFE adhesive tape
SiO2 fiberglass fabric
20187162226
SiO2 fiberglass fabric

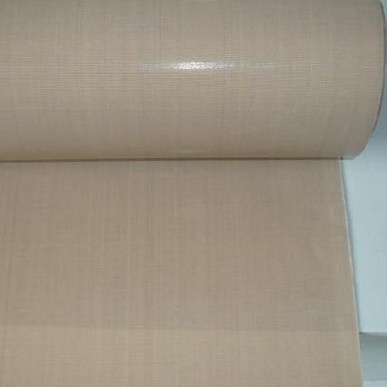

PTFE fabric
