Products > Specialty fiber > > 3D fabric
Product name : 3D fabric
Item : 2015112691551
MOQ : 120m2
Shipment : within 15 days after payment
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:

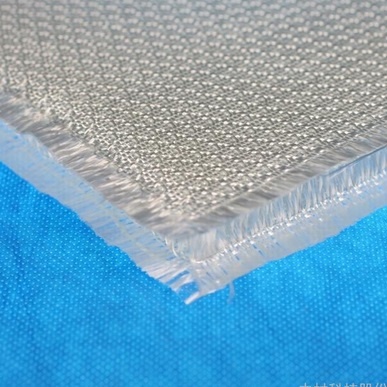

3D fabric

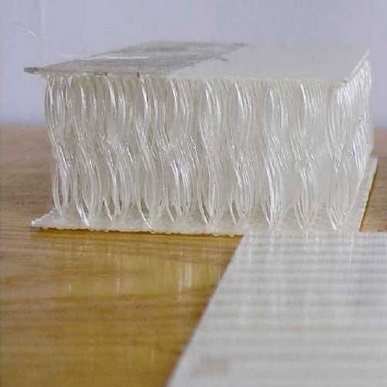

3D fabric is woven out of 100% E-glass fiber, as well as carbon fiber, aramid fiber and other high performance fibers. Its structure consists of two decklayers formed by warp and weft direction fiber and Z direction fiber which interconnect both decklayers. The typical structure of vertical piles can be recognized by the 8-shaped piles in warp direction. Other shapes of vertical piles, such as I-shape and V-shape, can be realized too. The thickness between two decklayers (Z direction) can be designed from 2mm to 40mm in order to meet different needs. It is good impact resistance, and widely used in railway industry, shipbuilding, aviation, spaceflight, wind energy, construction, double-deck storage tank etc..

Type





3

5

8

10

12

15

18

20

Core t5hickness

Normal N

mm

3.0

5.0

8.0

10.0

12.0

15.0

18.0

20.0

Decklayer thickness

Normal N

mm

0.36

0.36

0.36

0.58

0.58

0.58

0.58

0.58

Fabric weight

Normal N

g/m2

720

810

920

1440

1510

1580

1720

1880

Laminate weight

Polyester resin N

g/m2

1510

1680

1900

2930

3060

3250

3440

3570
