Products > Aramid fiber > > Aramid fabric
Product name : Aramid fabric
Item : 20145421491
MOQ : 100m2
Shipment : within 15 days after payment
 Enlarge Image                   Back
←[Previous Product]


Details:

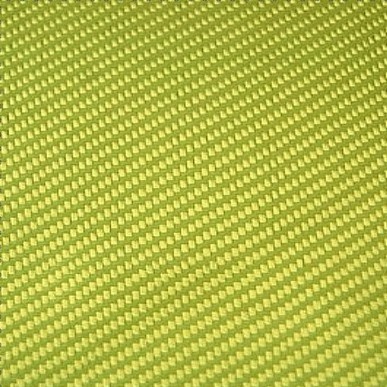

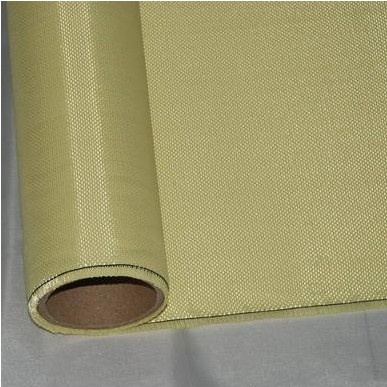

 Aramid fabric

Aramid Fabric are high toughness, light weight, extremely high strength and shock-absorbing. It is the one of most commonly used in composite materials. Aramid Fabric have application in engineering, medical equipments, military products, aerospace and spaceflight.

There can supply 200D 400D 800D 1000D 1500D 3000D aramid fiber fabric.
The specification can as your require.

Style

Weave style

Density (g/m2)

Reinforcement Yarn

Fiber Count(/10mm)

Thickness (mm)

Width (cm)

Warp

Weft

End Count

Pick Count

800D-P100

Plain

100

 800D

800D

6

5.5

0.16

100

1000D-P120

Plain

120

1000D

1000D

5.5

5.5

0.22

100

1000D-T120

Twill

120

1000D

1000D

5.5

5.5

0.22

100

1000D-S115

Satin 4HD

115

1000D

1000D

5.3

5.3

0.2

100





1.For the grade,K29,K49,K129 and some other special grade are all available for your choice for different application.

2.The twill weave pattern could be 2*2,3*3,4*4.

4.Standard roll length is 100m,50m is also available on request.

5.Standard width is 1000mm,other width would be also available on request.

6.We are tailor-made on detail request.




Related Products :

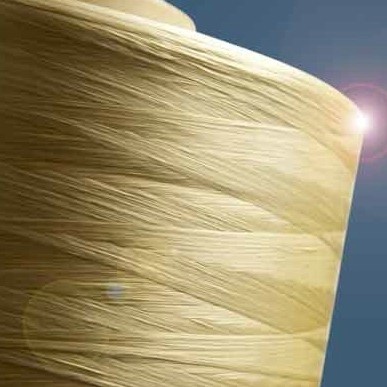

Aramid fiber yarn
